Stationary cargo-lifts hydraulic pressureStationary cargo-lifts hydraulic pressure_Suzhou Xuyangte Hydraulic Pressure Ascend Vehicle Bridge Machinery Co.,Ltd.

Video Display
Scope of application
Specification parameters
Product characteristics

Video Display

Scope of application

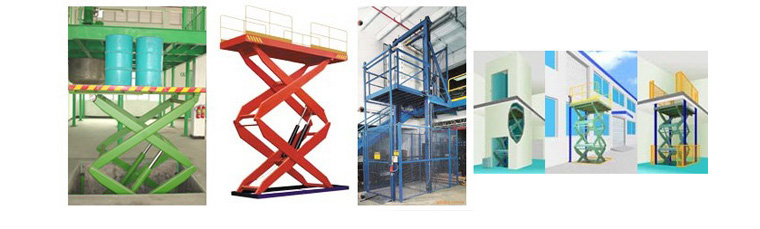

Fixed hydraulic elevator installation form: Fixed hydraulic elevator is suitable for indoor and outdoor installation under various environmental conditions. It can be installed in closed wellways or open floors according to the use requirements. It can be installed in concave foundation pit or flat ground.

Product introduction: fixed hydraulic lift platform is a good stability, and wide range of goods lifting equipment is mainly used for production line between height difference goods; Material uplines, downlines; When the assembly adjusting the height; High feeder feed; Large equipment when lifting with parts; Large machine feeding, the material; Storage loading and unloading facilities and forklift truck carrying vehicles such as supporting speed loading goods, etc. Fixed hydraulic lifts use requirements, can be equipped with additional device, and can be arbitrary many or combination.

Specification parameters

Model	Rated load(t)	Minimum height(mm)	Lifting trip(mm)	Maximum height(mm)	Platform size(mm)	Rise time(s)	Motor power(Kw)	Weight(Kg)
Fixed Hydraulic Elevator (Double Plug-in)
SJG0.48-0.38	2.00	640	3800	4440	2800×2000	102	3	2500
SJG0.48-5	2.00	700	5000	5700	4500×2200	62	5.5	4000
SJG0.48-4.4	2.50	700	4400	5100	3200×2000	51	7.5	3400
SJG0.48-7.2	2.50	830	7200	8030	5200×2500	95	7.5	8800
SJG0.48-3.5	4.50	760	3500	4260	4000×2000	50	5.5	4500
SJG0.48-5.4	4.80	830	5400	6230	5200×2500	95	7.5	8000
SJG0.48-7.2	3.00	1050	7200	8250	3400×1500	117	7.5	5500
Fixed Hydraulic Elevator (Multi-plug)
SJG0.48-5	0.50	850	5000	5850	2000×1000	47	2.2	1200
SJG0.48-3.3	1.00	840	3300	4140	1900×1500	30	3	1300
SJG0.48-5	1.00	1000	5000	6000	2000×1200	54	3	1600
SJG0.48-6.5	1.50	1060	6500	7560	3300×2200	83	5.5	4200
SJG0.48-3.5	2.00	1000	3500	4500	2200×1500	75	2.2	1800
SJG0.48-6	2.00	1300	6000	7300	2400×1600	62	5.5	2900
SJG0.48-9	2.00	1520	9000	10520	3000×1500	100	5.5	3500
SJG0.48-6	2.50	1050	6000	7050	3200×1500	77	7.5	5370
SJG0.48-7.2	3.00	1050	7200	8250	3400×1500	117	7.5	5500

Optional Configuration: Different configurations can achieve different effects. According to the installation environment of the lifting platform, combined with its own use requirements, the appropriate configuration can achieve better use effect.


Explosion-proof electrical appliances suitable for explosion-proof occasions	Guide wheels and rails to make the lifting platform run more steadily	External Power Unit for Easy Maintenance	Entrance and exit of mesa are in the form of guardrails such as hanging chains or crossbars.

Multipoint Control of Easy-to-operate Working Layers	Point or self-protection operation button	Alarm lights or alarm bells for elevator operation	Safety Switch to Close Elevator Circuit When Door Opens

Product characteristics

Fixed lifting cargo elevator is a special hydraulic lifting platform used to transport cargo between floors of buildings. The products are mainly used to transport cargo between different working floors, three-dimensional garage and underground garage. The product hydraulic system is equipped with anti-falling and overload safety protection devices. The operation buttons can be set on each floor and the working table of the lifting platform to achieve multi-point control. The product has strong structure, large carrying capacity, smooth lifting and easy installation and maintenance. It is an ideal freight conveying equipment for economic and practical substitution of elevators between low-rise floors. According to the requirements of installation environment and use of lifting platform, different optional configurations can be selected to achieve better use effect.

Previous:Rail-type lift platform

Next:Hydraulic lifting platform

Release time2011/7/7 Click-throughput：2471
